Product overview

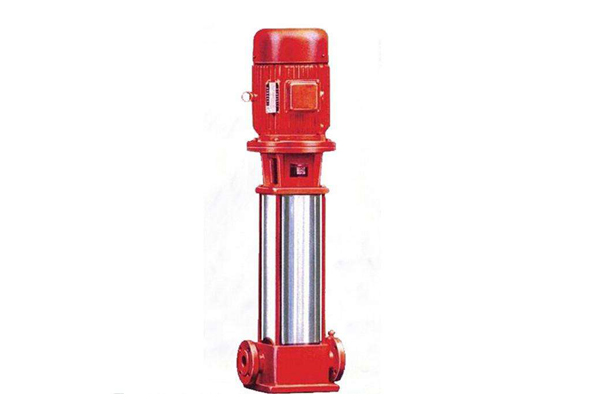

娱乐中心XBD - (I) type vertical single suction multistage pipeline fire pump set is a new generation of XBD pipeline type medium and low pressure fire pump unit developed by our company on the basis of the original vertical multi-stage pipeline pump according to the requirements of the newer standards of fire pump. It is used to transport clear water without solid particles and liquid with physical and chemical properties similar to water. It is suitable for all kinds of occasions such as residence, hotel, office building, commercial building, factory, hospital and so on.
娱乐中心The performance and technical conditions of xbd-gdl series fire pumps produced by our company meet the requirements of gb6245-1998 "performance requirements and test methods for fire pumps" issued by the state. The products have passed the test of national fire equipment quality supervision and testing center, and obtained the Shanghai fire protection product certification.
娱乐中心The company has strong technical force, rich production experience and perfect detection means, so as to ensure the stability and reliability of product quality.
Product features
娱乐中心1. Advanced hydraulic model, high efficiency, wide range of performance.
2. Vertical structure, small floor area.
3. Small vibration, low noise, the use of hydraulic balance axial force, so that the pump runs smoothly, safe and reliable.
4. The inlet and outlet of the pump are on the same horizontal axis with the same diameter, which is convenient for pipeline connection and loading and unloading.
娱乐中心technical parameter
Flow rate: 0.5-45l/s;
Pressure: 0.2-2.0mpa;
娱乐中心Power: 1.1-90kw;
娱乐中心Speed: 2900r / min;
Diameter: ф 25 - ф 150 mm;
娱乐中心Temperature range: ≤ 80 ℃.
model | flow Q | lift (m) | 娱乐中心efficiency (%) | 娱乐中心speed (r/min) | power (Kw) | NPSH (m) | In and out diameter (mm) | ||
(L/s) | (m3/h) | 娱乐中心Shaft power | Matching power | ||||||
XBD3.6/0.56-(I)25×3 | 2 | 0.56 | 36 | 30 | 2900 | 0.65 | 1.1 | 1.7 | 25 |
XBD4.8/0.56-(I)25×4 | 2 | 0.56 | 48 | 30 | 2900 | 0.87 | 1.1 | 1.7 | 25 |
XBD6/0.56-(I)25×5 | 2 | 0.56 | 60 | 30 | 2900 | 1.09 | 1.5 | 1.7 | 25 |
XBD7.2/0.56-(I)25×6 | 2 | 0.56 | 72 | 30 | 2900 | 1.30 | 1.5 | 1.7 | 25 |
娱乐中心XBD8.4/0.56-(I)25×7 | 2 | 0.56 | 84 | 30 | 2900 | 1.52 | 2.2 | 1.7 | 25 |
娱乐中心XBD9.6/0.56-(I)25×8 | 2 | 0.56 | 96 | 30 | 2900 | 0.74 | 2.2 | 1.7 | 25 |
XBD10.8/0.56-(I)25×9 | 2 | 0.56 | 108 | 30 | 2900 | 1.96 | 2.2 | 1.7 | 25 |
XBD120/0.56-(I)25×10 | 2 | 0.56 | 120 | 30 | 2900 | 2.17 | 3 | 1.7 | 25 |
娱乐中心XBD13.2/0.56-(I)254×11 | 2 | 0.56 | 132 | 30 | 2900 | 2.39 | 3 | 1.7 | 25 |
娱乐中心XBD14.0/0.56-(I)25×12 | 2 | 0.56 | 144 | 30 | 2900 | 2.61 | 3 | 1.7 | 25 |
XBD3.3/1.11-(I)25×3 | 4 | 1.11 | 33 | 40 | 2900 | 0.90 | 1.1 | 1.7 | 25 |
娱乐中心XBD4.4/1.11-(I)25×4 | 4 | 1.11 | 44 | 40 | 2900 | 1.20 | 1.5 | 1.7 | 25 |
XBD6.6/1.11-(I)25×6 | 4 | 1.11 | 66 | 40 | 2900 | 1.80 | 2.2 | 1.7 | 25 |
XBD7.7/1.11-(I)25×7 | 4 | 1.11 | 77 | 40 | 2900 | 2.10 | 2.2 | 1.7 | 25 |
XBD8.8/1.11-(I)25×8 | 4 | 1.11 | 88 | 40 | 2900 | 2.40 | 3 | 1.7 | 25 |
XBD9.9/1.11-(I)25×9 | 4 | 1.11 | 99 | 40 | 2900 | 2.70 | 3 | 1.7 | 25 |
娱乐中心XBD11/1.11-(I)25×10 | 4 | 1.11 | 110 | 40 | 2900 | 3.00 | 4 | 1.7 | 25 |
娱乐中心XBD12.1/1.11-(I)25×11 | 4 | 1.11 | 121 | 40 | 2900 | 3.30 | 4 | 1.7 | 25 |
XBD13.2/1.11-(I)25×12 | 4 | 1.11 | 132 | 40 | 2900 | 3.60 | 4 | 1.7 | 25 |
XBD14.3/1.11-(I)25×13 | 4 | 1.11 | 143 | 40 | 2900 | 3.90 | 4 | 1.7 | 25 |
XBD3.6/1.67-(I)40×3 | 6 | 1.67 | 36 | 52 | 2900 | 1.13 | 1.5 | 1.7 | 40 |
XBD4.8/1.67-(I)40×4 | 6 | 1.67 | 48 | 52 | 2900 | 1.5 | 2.2 | 1.7 | 40 |
娱乐中心XBD6/1.67-(I)40×5 | 6 | 1.67 | 60 | 52 | 2900 | 1.88 | 2.2 | 1.7 | 40 |
XBD7.2/1.67-(I)40×6 | 6 | 1.67 | 72 | 52 | 2900 | 2.26 | 3 | 1.7 | 40 |
XBD8.7/1.67-(I)40×7 | 6 | 1.67 | 84 | 52 | 2900 | 2.64 | 3 | 1.7 | 40 |
娱乐中心XBD9.6/1.67-(I)40×8 | 6 | 1.67 | 96 | 52 | 2900 | 3.01 | 4 | 1.7 | 40 |
XBD10.8/1.67-(I)40×9 | 6 | 1.67 | 108 | 52 | 2900 | 3.39 | 4 | 1.7 | 40 |
XBD12/1.67-(I)40×10 | 6 | 1.67 | 120 | 52 | 2900 | 3.77 | 4 | 1.7 | 40 |
XBD13.2/1.67-(I)40×11 | 6 | 1.67 | 132 | 52 | 2900 | 4.15 | 5.5 | 1.7 | 40 |
XBD14.4/1.67-(I)40×12 | 6 | 1.67 | 144 | 52 | 2900 | 4.52 | 5.5 | 1.7 | 40 |
娱乐中心XBD3/33.3-(I)50×2 | 12 | 3.33 | 30 | 56 | 2900 | 1.75 | 2.2 | 1.8 | 50 |
XBD4.5/3.33-(I)50×3 | 12 | 3.33 | 45 | 56 | 2900 | 2.63 | 3 | 1.8 | 50 |
XBD6.0/3.33-(I)50×4 | 12 | 3.33 | 60 | 56 | 2900 | 3.6 | 4 | 1.8 | 50 |
娱乐中心XBD7.5/3.33-(I)50×5 | 12 | 3.33 | 75 | 56 | 2900 | 4.27 | 5.5 | 1.8 | 50 |
XBD9/3.33-(I)50×6 | 12 | 3.33 | 90 | 56 | 2900 | 5.25 | 5.5 | 1.8 | 50 |
娱乐中心XBD10/3.33-(I)50×7 | 12 | 3.33 | 105 | 56 | 2900 | 6.2 | 7.5 | 1.8 | 50 |
娱乐中心XBD12/3.33-(I)50×8 | 12 | 3.33 | 120 | 56 | 2900 | 7.0 | 7.5 | 1.8 | 50 |
XBD13.5/3.3-(I)50×9 | 12 | 3.33 | 135 | 56 | 2900 | 7.87 | 11 | 1.8 | 50 |
XBD15/3.33-(I)50×10 | 12 | 3.33 | 150 | 56 | 2900 | 8.75 | 11 | 1.8 | 50 |
XBD3/5-(I)50×2 | 18 | 5 | 30 | 62 | 2900 | 2.37 | 3 | 1.8 | 50 |
娱乐中心XBD4.5/5-(I)50×3 | 18 | 5 | 45 | 62 | 2900 | 3.56 | 4 | 1.8 | 50 |
娱乐中心XBD6/5-(I)50×4 | 18 | 5 | 60 | 62 | 2900 | 4.75 | 5.35 | 1.8 | 50 |
XBD7.5/5-(I)50×5 | 18 | 5 | 75 | 62 | 2900 | 5.93 | 7.5 | 1.8 | 50 |
娱乐中心XBD9/5-(I)50×6 | 18 | 5 | 90 | 62 | 2900 | 7.12 | 7.5 | 1.8 | 50 |
娱乐中心XBD10.5/5-(I)50×7 | 18 | 5 | 105.5 | 62 | 2900 | 8.30 | 11 | 1.8 | 50 |
XBD12/5-(I)50×8 | 18 | 5 | 120 | 62 | 2900 | 9.49 | 11 | 1.8 | 50 |
娱乐中心XBD13.5/5-(I)50×9 | 18 | 5 | 135 | 62 | 2900 | 10.68 | 11 | 1.8 | 50 |
XBD15/5-(I)50×10 | 18 | 5 | 150 | 62 | 2900 | 11.87 | 15 | 1.8 | 50 |
娱乐中心XBD2.4/10-(I)80×2 | 36 | 10 | 24 | 68 | 2900 | 3.46 | 4 | 4 | 80 |
娱乐中心XBD3.6/10-(I)80×3 | 36 | 10 | 36 | 68 | 2900 | 5.19 | 5.5 | 4 | 80 |
XBD4.8/10-(I)80×4 | 36 | 10 | 48 | 68 | 2900 | 6.92 | 7.5 | 4 | 80 |
娱乐中心XBD6/10-(I)80×5 | 36 | 10 | 60 | 68 | 2900 | 8.67 | 11 | 4 | 80 |
娱乐中心XBD7.2/10-(I)80×6 | 36 | 10 | 72 | 68 | 2900 | 10.39 | 11 | 4 | 80 |
XBD8.4/10-(I)80×7 | 36 | 10 | 84 | 68 | 2900 | 12.12 | 15 | 4 | 80 |
XBD9.6/10-(I)80×8 | 36 | 10 | 96 | 68 | 2900 | 13.85 | 15 | 4 | 80 |
XBD10.8/10-(I)80×9 | 36 | 10 | 108 | 68 | 2900 | 15.59 | 18.5 | 4 | 80 |
XBD12/10-(I)80×10 | 36 | 10 | 120 | 68 | 2900 | 17.31 | 18.5 | 4 | 80 |
XBD2.8/15-(I)80×2 | 54 | 15 | 28 | 70 | 2900 | 5.88 | 7.5 | 4 | 80 |
XBD4.2/15-(I)80×3 | 54 | 15 | 42 | 70 | 2900 | 8.82 | 11 | 4 | 80 |
娱乐中心XBD5.6/15-(I)80×4 | 54 | 15 | 56 | 70 | 2900 | 11.76 | 15 | 4 | 80 |
娱乐中心XBD7/15-(I)80×5 | 54 | 15 | 70 | 70 | 2900 | 14.7 | 18.5 | 4 | 80 |
娱乐中心XBD8.4/15-(I)80×6 | 54 | 15 | 84 | 70 | 2900 | 17.64 | 18.5 | 4 | 80 |
娱乐中心XBD9.8/15-(I)80×7 | 54 | 15 | 98 | 70 | 2900 | 20.58 | 22 | 4 | 80 |
XBD11.2/15-(I)80×8 | 54 | 15 | 112 | 70 | 2900 | 23.54 | 30 | 4 | 80 |
XBD12.6/15-(I)80×9 | 54 | 15 | 126 | 70 | 2900 | 26.49 | 30 | 4 | 80 |
XBD14/15-(I)80×10 | 54 | 15 | 140 | 70 | 2900 | 29.43 | 37 | 4 | 80 |
XBD2.8/20-(I)100×2 | 72 | 20 | 28 | 73 | 2900 | 7.53 | 11 | 4.5 | 100 |
XBD4.2/20-(I)100×3 | 72 | 20 | 42 | 73 | 2900 | 10.29 | 15 | 4.5 | 100 |
XBD5.6/20-(I)100×4 | 72 | 20 | 56 | 73 | 2900 | 15.05 | 18.5 | 4.5 | 100 |
娱乐中心XBD7/20-(I)100×5 | 72 | 20 | 70 | 73 | 2900 | 18.81 | 22 | 4.5 | 100 |
XBD8.4/20-(I)100×6 | 72 | 20 | 84 | 73 | 2900 | 22.57 | 30 | 4.5 | 100 |
XBD9.8/20-(I)100×7 | 72 | 20 | 98 | 73 | 2900 | 26.34 | 30 | 4.5 | 100 |
XBD11.2/20-(I)100×8 | 72 | 20 | 112 | 73 | 2900 | 30.1 | 37 | 4.5 | 100 |
XBD12.6/20-(I)100×9 | 72 | 20 | 125 | 73 | 2900 | 33.9 | 37 | 4.5 | 100 |
XBD14/20-(I)100×10 | 72 | 20 | 140 | 73 | 2900 | 37.6 | 45 | 4.5 | 100 |
XBD4.2/25-(I)125×2 | 90 | 25 | 42 | 73 | 2900 | 14.1 | 18.5 | 4.3 | 125 |
娱乐中心XBD6.3/25-(I)125×3 | 90 | 25 | 63 | 73 | 2900 | 21.2 | 30 | 4.3 | 125 |
XBD8.4/25-(I)125×4 | 90 | 25 | 84 | 73 | 2900 | 28.2 | 37 | 4.3 | 125 |
XBD10.5/25-(I)125×5 | 90 | 25 | 108 | 73 | 2900 | 35.3 | 45 | 4.3 | 125 |
XBD12.6/25-(I)125×6 | 90 | 25 | 126 | 73 | 2900 | 40.3 | 55 | 4.3 | 125 |
XBD14.7/25-(I)125×7 | 90 | 25 | 147 | 73 | 2900 | 40.4 | 55 | 4.3 | 125 |
娱乐中心XBD16.8/25-(I)125×8 | 90 | 25 | 168 | 73 | 2900 | 56.4 | 75 | 4.3 | 125 |
娱乐中心XBD18.9/25-(I)125×9 | 90 | 25 | 189 | 73 | 2900 | 63.5 | 75 | 4.3 | 125 |
娱乐中心XBD21/25-(I)125×10 | 90 | 25 | 210 | 73 | 2900 | 70.6 | 90 | 4.3 | 125 |
XBD3.8/30-(I)125×2 | 108 | 30 | 38 | 74 | 2900 | 15.1 | 18.5 | 4.6 | 125 |
娱乐中心XBD5.7/30-(I)125×3 | 108 | 30 | 57 | 74 | 2900 | 22.7 | 30 | 4.6 | 125 |
娱乐中心XBD7.6/30-(I)125×4 | 108 | 30 | 76 | 74 | 2900 | 30.2 | 37 | 4.6 | 125 |
XBD9.5/30-(I)125×5 | 108 | 30 | 95 | 74 | 2900 | 37.8 | 45 | 4.6 | 125 |
XBD11.4/60-(I)125×6 | 108 | 30 | 114 | 74 | 2900 | 45.3 | 55 | 4.6 | 125 |
XBD13.3/30-(I)125×7 | 108 | 30 | 133 | 74 | 2900 | 52.9 | 55 | 4.6 | 125 |
XBD15.2/30-(I)125×8 | 108 | 30 | 152 | 74 | 2900 | 60.5 | 75 | 4.6 | 125 |
XBD17.1/30-(I)125×9 | 108 | 30 | 171 | 74 | 2900 | 68.0 | 75 | 4.6 | 125 |
XBD19/30-(I)125×10 | 108 | 30 | 160 | 74 | 2900 | 75.6 | 90 | 4.6 | 125 |
XBD4.3/35-(I)150×2 | 126 | 35 | 43 | 72 | 2900 | 20.5 | 30 | 4.4 | 150 |
XBD6.5/35-(I)150×3 | 126 | 35 | 65 | 72 | 2900 | 30.7 | 37 | 4.4 | 150 |
XBD8.7/35-(I)150×4 | 126 | 35 | 87 | 72 | 2900 | 40.9 | 45 | 4.4 | 150 |
娱乐中心XBD10.9/35-(I)150×5 | 126 | 35 | 109 | 72 | 2900 | 51.2 | 75 | 4.4 | 150 |
XBD13.0/35-(I)150×6 | 126 | 35 | 130 | 72 | 2900 | 61.4 | 75 | 4.4 | 150 |
娱乐中心XBD15.2/35-(I)150×7 | 126 | 35 | 152 | 72 | 2900 | 71.6 | 90 | 4.4 | 150 |
娱乐中心XBD17.4/35-(I)150×8 | 126 | 35 | 174 | 72 | 2900 | 81.9 | 90 | 4.4 | 150 |
XBD19.6/35-(I)150×9 | 126 | 35 | 196 | 72 | 2900 | 92.1 | 110 | 4.4 | 150 |
XBD21.8/35-(I)150×10 | 126 | 35 | 218 | 72 | 2900 | 102.4 | 132 | 4.4 | 150 |
XBD4.1/40-(I)150×2 | 144 | 40 | 42 | 76 | 2900 | 21.2 | 30 | 4.4 | 150 |
娱乐中心XBD6.2/40-(I)150×3 | 144 | 40 | 62 | 76 | 2900 | 32.0 | 37 | 4.4 | 150 |
XBD8.6/40-(I)150×4 | 144 | 40 | 86 | 76 | 2900 | 42.7 | 55 | 4.4 | 150 |
娱乐中心XBD10.4/40-(I)150×5 | 144 | 40 | 104 | 76 | 2900 | 53.4 | 75 | 4.4 | 150 |
XBD12.4/40-(I)150×6 | 144 | 40 | 124 | 76 | 2900 | 64.0 | 75 | 4.4 | 150 |
娱乐中心XBD14.5/40-(I)150×7 | 144 | 40 | 145 | 76 | 2900 | 74.7 | 90 | 4.4 | 150 |
娱乐中心XBD16.6/40-(I)150×8 | 144 | 40 | 166 | 76 | 2900 | 85.4 | 110 | 4.4 | 150 |
娱乐中心XBD18.7/40-(I)150×9 | 144 | 40 | 187 | 76 | 2900 | 96.0 | 110 | 4.4 | 150 |
XBD20.7/40-(I)150×10 | 144 | 40 | 207 | 76 | 2900 | 107.1 | 132 | 4.4 | 150 |
XBD4/45-(I)150×2 | 162 | 45 | 40 | 78 | 2900 | 22.6 | 30 | 4.5 | 150 |
娱乐中心XBD6/45-(I)150×3 | 162 | 45 | 60 | 78 | 2900 | 34.0 | 37 | 4.5 | 150 |
娱乐中心XBD8/45-(I)150×4 | 162 | 45 | 80 | 78 | 2900 | 45.3 | 55 | 4.5 | 150 |
娱乐中心XBD10/45-(I)150×5 | 162 | 45 | 100 | 78 | 2900 | 56.6 | 75 | 4.5 | 150 |
XBD12/45-(I)150×6 | 162 | 45 | 120 | 78 | 2900 | 67.9 | 75 | 4.5 | 150 |
XBD14/45-(I)150×7 | 162 | 45 | 140 | 78 | 2900 | 79.2 | 90 | 4.5 | 150 |
XBD16/45-(I)150×8 | 162 | 45 | 160 | 78 | 2900 | 90.6 | 110 | 4.5 | 150 |
娱乐中心XBD18/45-(I)150×9 | 162 | 45 | 180 | 78 | 2900 | 101.9 | 110 | 4.5 | 150 |
XBD20/45-(I)150×10 | 162 | 45 | 200 | 78 | 2900 | 113.2 | 132 | 4.5 | 150 |
It is suitable for all kinds of occasions such as residence, hotel, office building, commercial building, factory, hospital and so on.
